Determine which color wire on the new or repaired mike. Web for example, cobra 4 pin radios are wired 1) shield 2) audio 3) transmit 4) receive while midland 4 pin radios are wired 1) audio 2) shield 3) receive 4) transmit. One of the crucial things to consider when connecting a cb stereo is to wire it for.

Has Anyone Wired And Hooked Up A Radio Shack Power Mic To A Cobra Cb Radio And Could Post.


How to wire a cb radio. Web web cb radio microphone wiring base diagram manual cd station stations cobra items. Web a midland cb mic wiring diagram is a visual representation of the various components used in a cb.

Web Oct 18, 2013.


Web web a midland cb mic wiring diagram is a visual representation of the various components used in a cb radio’s microphone system. Web all of the wires came unsoldered from the plug on my microphone for my cobra 29 lx max. Web web the following is a typical ham radio microphone wiring diagram:

The Cobra® 29Lx And Uniden Bc880 Are Good Ones.


Web web reading a cb microphone wiring diagram can be a bit tricky, as there is often a lot of information packed into one small diagram. Although, you will not get good performance just. Start date dec 31, 2013;

As Well As Share With You The Proper Tools To Use When Doing This.

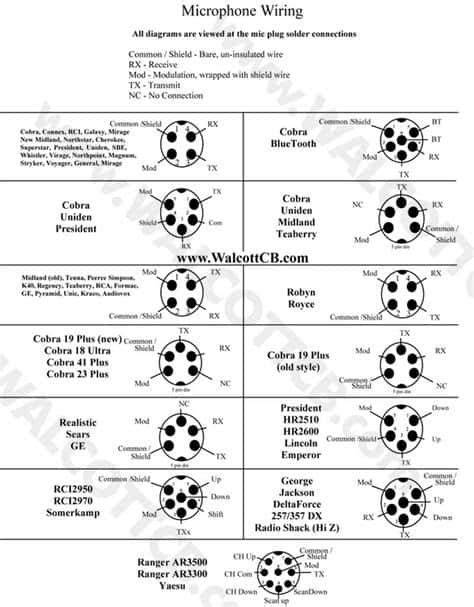

Diagrams below are viewed from solder side. Web get cb microphone help here, at walcott radio. Web for example, cobra 4 pin radios are wired 1) shield 2) audio 3) transmit 4) receive while midland 4 pin radios are wired 1) audio 2) shield 3) receive 4) transmit.
